Hughes Race Built

292/302 Camshaft | 1JZ-GTE Non VVTi

292/302 Camshaft | 1JZ-GTE Non VVTi

$1,470.00 NZD
$1,470.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

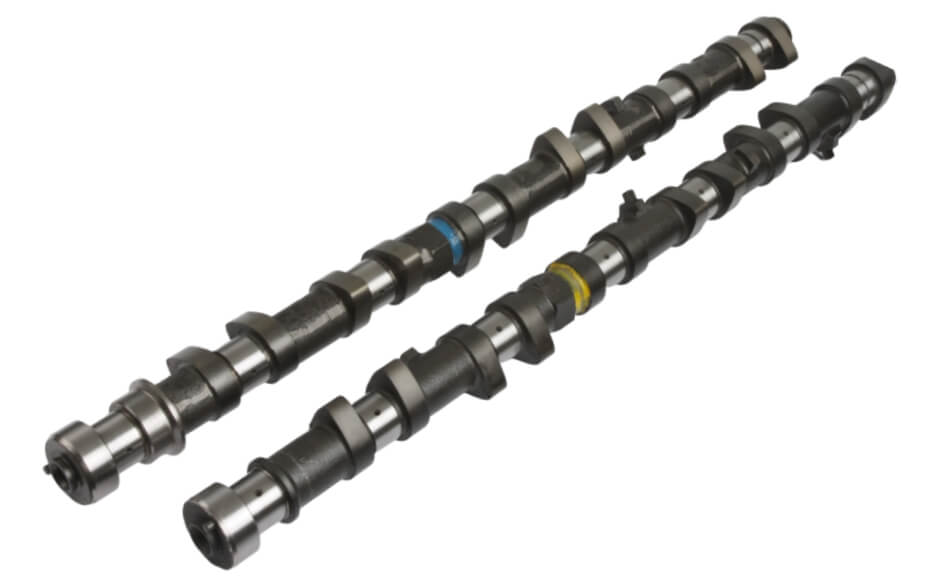

Kelford Cams 292/302 | 1JZ-GTE Non VVTi

Kelford Cams camshafts for Toyota 1JZ-GTE. For non-vvti engines

292°/302° | 10.80mm/10.80mm

Drag Racing Cams for wide open throttle and high rpm power. 1JZ-GTE non VVTI engine running 72mm+ turbocharger. Ideal for alcohol based fuels. Designed to keep the valvetrain stable even on stock buckets. Cylinder head may require machining for clearance of high lift cam lobes.

  • Kelford Cams recommend KVS109-1JZ-T valve spring.

Fitment

  • Toyota 1JZ-GTE non VVTi

Camshaft specs

  • Intake duration: 292 deg
  • Exhaust duration: 302 deg
  • Intake lift: 10.80 mm
  • Exhaust lift: 10.80 mm

Details

  • Part Number: 229-G
